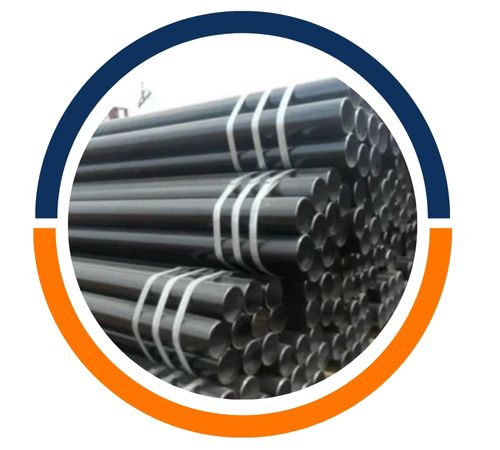

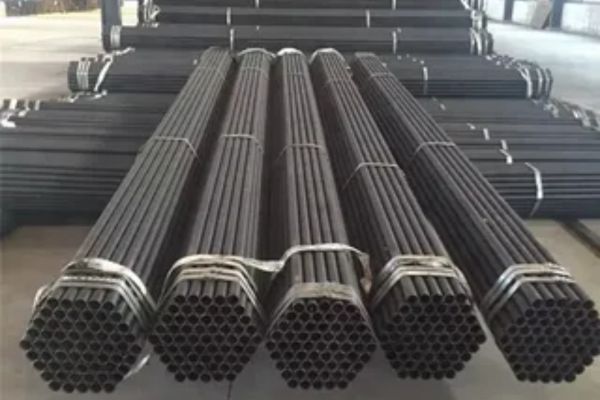

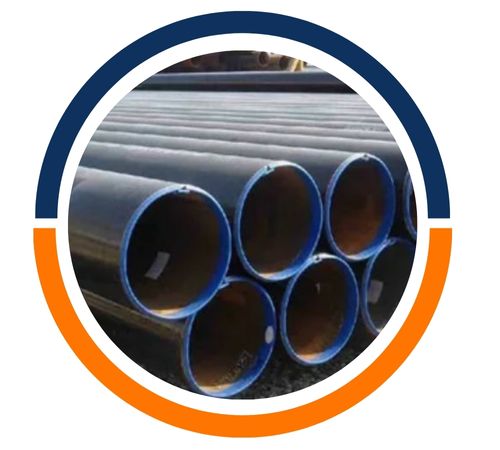

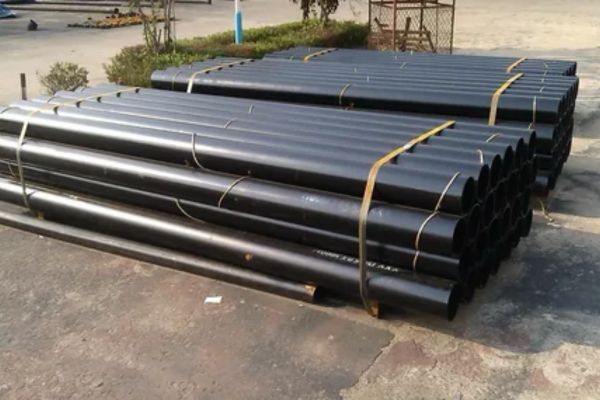

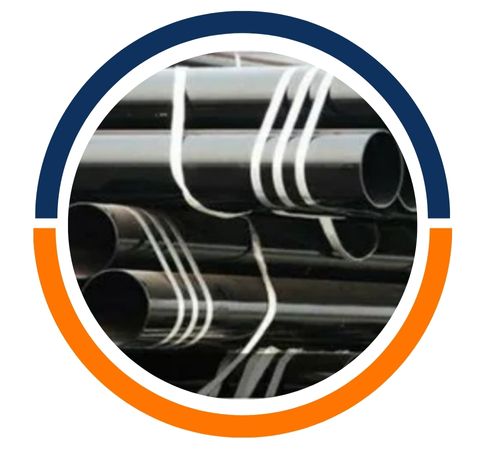

Chetan Steel is a well-respected manufacturer and supplier located in Delhi, known for providing top-notch Carbon Steel SA178 Tubing to a variety of industries. The company prides itself on maintaining high manufacturing standards, delivering consistent quality, and offering customer-focused solutions. With state-of-the-art infrastructure and rigorous quality checks, Chetan Steel guarantees reliable tubing products that adhere to international standards. Their Carbon Steel SA178 Tubes are celebrated for their strength, durability, and outstanding performance in high-temperature and high-pressure settings. Catering to power plants, boiler manufacturers, and engineering sectors, Chetan Steel has earned a solid reputation for timely deliveries, competitive pricing, and fostering long-term trust with customers in the steel industry.
The manufacturing of Carbon Steel SA178 Tubing involves a carefully controlled blend of elements, including carbon, manganese, silicon, sulfur, and phosphorus. Carbon boosts strength, while manganese enhances toughness and wear resistance. These tubes demonstrate impressive tensile strength, yield strength, and elongation, making them perfect for pressure-bearing applications. Their mechanical properties enable the tubing to effectively handle thermal stress and operating pressure. Plus, SA178 tubing is known for its good weldability and formability, which simplifies fabrication and ensures a long service life with consistent performance in challenging industrial environments.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 178 Gr. A | A/SA 178 Gr. C | A/SA 178 Gr. D |
| C | 0.06 – 0.18 | 0.35 max | 0.27 max |
| Mn | 0.27 – 0.63 | 0.80 max | 1.00 – 1.50 |
| P | 0.035 max | 0.035 max | 0.030 max |
| S | 0.035 max | 0.035 max | 0.015 max |
| Si | – | – | 0.10 min |
| Element | A/SA 178 Grade A | A/SA 178 Grade C | A/SA 178 Grade D |
| Tensile Strength KSI (MPa) | 47 (325) | 60 (415) | 70 (485) |
| Yield Strength KSI (MPa) | 26 (180) | 37 (255) | 40 (275) |
| Elongation min. % | 35 | 30 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chetan Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA178 Tubing in Delhi, India. We offer premium steel materials and a wide range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and outstanding customer service, we source the finest raw materials to ensure exceptional strength and durability for demanding industrial applications. Contact us today for all your Carbon Steel SA178 Tubing requirements!
| Grade | Grade A, Grade C, Grade D, BKW, NBK, GBK |
| Available sizes | 4 Inch to 26 Inch, Customized Size Available |
| OD | 12.7mm to 127mm |
| Wall thickness | 1.5mm to 6.0mm |
| Length | 6m-25m, Custom Double / Single Random |
| End Finish | Plain End, Beveled End, Treaded Protected With Plastic End Caps |
| Shape | Round, Coiled, “U” Bend, Rectangular, Hydraulic |
| Manufacturing types |
|
| Common uses & application |
|

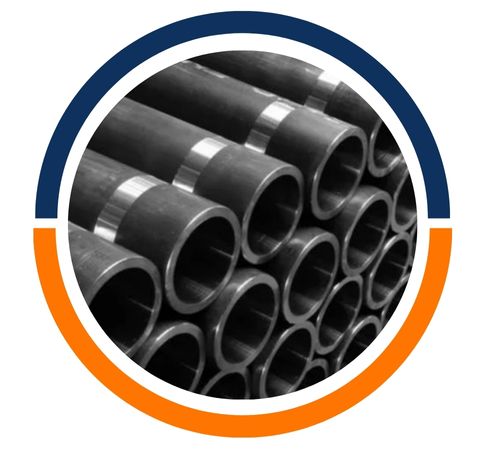

| Producing process | Electric-Resistance-Welded |
| Delivery Condition | Annealed, Normalized, Tempered, Heat Treatment, BK, BKS |
| Surface | Varnish |
| Common Supply Terms followed |
|

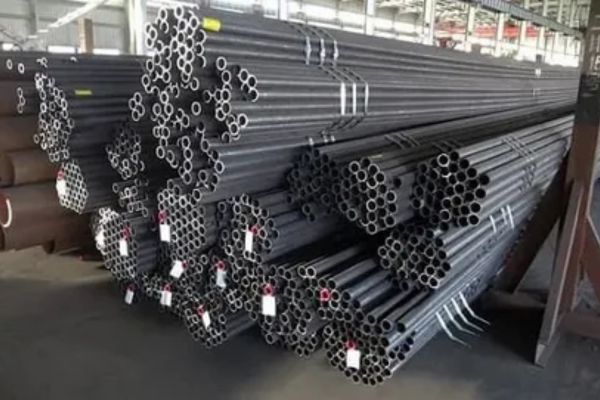

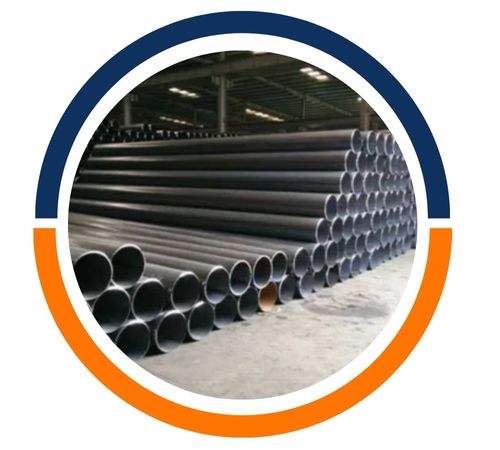

Carbon Steel SA178 Tubing finds extensive use in industries where efficient heat transfer and pressure resistance are crucial. It’s commonly utilized in boilers, heat exchangers, condensers, economizers, and superheaters. Power generation plants, thermal stations, refineries, and petrochemical industries depend on these tubes for reliable operation. Additionally, SA178 tubing is employed in pressure vessels, industrial piping systems, and engineering equipment. Thanks to its durability, cost-effectiveness, and ability to perform under high temperatures and pressures, it’s an excellent choice for a wide array of industrial applications.
Chetan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Delhi, India.
