Chetan Steel is a prominent producer and supplier of premium carbon steel screws in Delhi, India. With a reputation for strength and accuracy, we offer durable fastening solutions for construction, automotive, and engineering industries. Our carbon steel screws are engineered for maximum strength, corrosion resistance, and reliability to deliver the best performance in challenging applications. At Chetan Steel, our focus is innovation and customer delight, providing best-in-class products that are crafted to suit the industry standards as well as the project needs. Select us for steel fastening excellence.
Carbon steel screws consist mostly of iron and carbon (0.05%–2.0%), with manganese, silicon, and traces being possible additions. They have good mechanical properties in the form of high strength, hardness, wear resistance and good tensile strength. Depending on the percentage of carbon, they can be ductile (low carbon) to very strong but brittle (high carbon). The benefits are cost-effectiveness, durability, machinability and versatility for different applications, from construction to machinery, which is why they are a popular choice in many industries.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

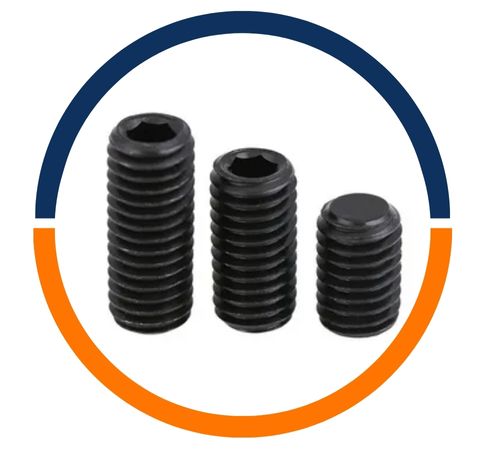

Type : Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chetan Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Screw in Delhi, India. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Screw needs!
| Â Screw Nom. Size Thread Pitch | Body Diameter D | Head Diameter A | Head Height H | Chamfer or Radius S | Hexagon Socket Size J | Spline Socket Sizea M | Key Engagement T | Transition Dia. B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Nom. | Nom. | Min | Max | |
| M1.6 × 0.35 | 1.60 | 1.46 | 3.00 | 2.87 | 1.60 | 1.52 | 0.16 | 1.5 | 1.829 | 0.80 | 2.0 |
| M2 × 0.4 | 2.00 | 1.86 | 3.80 | 3.65 | 2.00 | 1.91 | 0.20 | 1.5 | 1.829 | 1.00 | 2.6 |
| M2.5 × 0.45 | 2.50 | 2.36 | 4.50 | 4.33 | 2.50 | 2.40 | 0.25 | 2.0 | 2.438 | 1.25 | 3.1 |
| M3 × 0.5 | 3.00 | 2.86 | 5.50 | 5.32 | 3.00 | 2.89 | 0.30 | 2.5 | 2.819 | 1.50 | 3.6 |
| M4 × 0.7 | 4.00 | 3.82 | 7.00 | 6.80 | 4.00 | 3.88 | 0.40 | 3.0 | 3.378 | 2.00 | 4.7 |
| M5 × 0.8 | 5.00 | 4.82 | 8.50 | 8.27 | 5.00 | 4.86 | 0.50 | 4.0 | 4.648 | 2.50 | 5.7 |
| M6 × 1 | 6.00 | 5.82 | 10.00 | 9.74 | 6.00 | 5.85 | 0.60 | 5.0 | 5.486 | 3.00 | 6.8 |
| M8 × 1.25 | 8.00 | 7.78 | 13.00 | 12.70 | 8.00 | 7.83 | 0.80 | 6.0 | 7.391 | 4.00 | 9.2 |
| M10 × 1.5 | 10.00 | 9.78 | 16.00 | 15.67 | 10.00 | 9.81 | 1.00 | 8.0 | … | 5.00 | 11.2 |
| M12 × 1.75 | 12.00 | 11.73 | 18.00 | 17.63 | 12.00 | 11.79 | 1.20 | 10.0 | … | 6.00 | 14.2 |
| M14 × 2b | 14.00 | 13.73 | 21.00 | 20.60 | 14.00 | 13.77 | 1.40 | 12.0 | … | 7.00 | 16.2 |
| M16 × 2 | 16.00 | 15.73 | 24.00 | 23.58 | 16.00 | 15.76 | 1.60 | 14.0 | … | 8.00 | 18.2 |
| M20 × 2.5 | 20.00 | 19.67 | 30.00 | 29.53 | 20.00 | 19.73 | 2.00 | 17.0 | … | 10.00 | 22.4 |
| M24 × 3 | 24.00 | 23.67 | 36.00 | 35.48 | 24.00 | 23.70 | 2.40 | 19.0 | … | 12.00 | 26.4 |
| M30 × 3.5 | 30.00 | 29.67 | 45.00 | 44.42 | 30.00 | 29.67 | 3.00 | 22.0 | … | 15.00 | 33.4 |
| M36 × 4 | 36.00 | 35.61 | 54.00 | 53.37 | 36.00 | 35.64 | 3.60 | 27.0 | … | 18.00 | 39.4 |
| M42 × 4.5 | 42.00 | 41.61 | 63.00 | 62.31 | 42.00 | 41.61 | 4.20 | 32.0 | … | 21.00 | 45.6 |
| M48 × 5 | 48.00 | 47.61 | 72.00 | 71.27 | 48.00 | 47.58 | 4.80 | 36.0 | … | 24.00 | 52.6 |
| Â Screw Size | Body Dia | Hex Key Size | Head Height | Head Dia | Maximum Thread Length | Minimum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 0.05 | 0.06 | 0.096 | 5/8 | 3/8 |
| No. 1 | 0.073 | 1/16 | 0.073 | 0.118 | 7/8 | 3/8 |
| No. 2 | 0.086 | 5/64 | 0.086 | 0.14 | 7/8 | 1/2 |
| No. 3 | 0.099 | 5/64 | 0.099 | 0.161 | 7/8 | 1/2 |
| No. 4 | 0.112 | 3/32 | 0.112 | 0.183 | 11/8 | 11/16 |
| No. 5 | 0.125 | 3/32 | 0.125 | 0.205 | 1 | 11/16 |
| No. 6 | 0.138 | 7/64 | 0.138 | 0.226 | 11/8 | 11/16 |
| No. 8 | 0.164 | 9/64 | 0.164 | 0.27 | 11/4 | 3/4 |
| No. 10 | 0.19 | 5/32 | 0.19 | 0.312 | 13/8 | 15/16 |
| No. 12 | 0.216 | 5/32 | 0.216 | 0.345 | 11/4 | 15/16 |
| 1/4 | 0.250 | 3/16 | 1/4 | 3/8 | 11/2 | 15/16 |
| 5/16 | 0.3125 | 1/4 | 5/16 | 15/32 | 1-3/4 | 1-1/16 |
| 3/8 | 0.375 | 5/16 | 3/8 | 9/16 | 2 | 1-3/16 |
| 7/16 | 0.438 | 3/8 | 7/16 | 21/32 | 2-1/4 | 13/16 |
| 1/2 | 0.500 | 3/8 | 1/2 | 3/4 | 2-1/2 | 1-3/8 |
| 9/16 | 0.5625 | 7/16 | 9/16 | 27/32 | 2-7/16 | 1-5/8 |
| 5/8 | 0.625 | 1/2 | 5/8 | 15/16 | 3 | 1-5/8 |
| 3/4 | 0.750 | 5/8 | 3/4 | 11/8 | 3-1/2 | 1-7/8 |
| 7/8 | 0.875 | 3/4 | 7/8 | 15/16 | 3-3/4 | 2-1/16 |
| 1 | 1.000 | 3/4 | 1 | 11/2 | 4-1/2 | 2-1/4 |
| 1-1/8 | 1.125 | 7/8 | 1-1/8 | 111/16 | 4-21/32 | 2-13/16 |
| 1-1/4 | 1.250 | 7/8 | 1-1/4 | 17/8 | 5-3/32 | 3-1/8 |
| 1-1/2 | 1.500 | 1 | 1-1/2 | 21/4 | 6-5/64 | 3-3/4 |
| 1-3/4 | 1.750 | 11/4 | 1-3/4 | 25/8 | 7-1/8 | 4-3/8 |
| 2 | 2.000 | 11/2 | 2 | 3 | 8-7/64 | 5 |
Carbon steel screws have wide usage in construction, manufacturing, and the automobile industry due to their strength and durability. They provide secure fastening in wood, plastic, and metal work. In building construction, they provide high tensile strength for load-bearing joints. Carbon steel screws are also common in machinery, furniture making, and household repairs. Corrosion-resistant coatings provide increased longevity in marine and outdoor applications. They are also utilized in pipelines, HVAC systems, and electrical installations to provide consistent performance in different industrial applications.
Chetan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Delhi, India.
