Low Temperature Carbon Steel LF5 Flanges

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Chetan Steel is a reputable manufacturer and supplier of Low Temperature Carbon Steel LF5 flanges, proudly based in Delhi, India. They specialize in crafting high-quality LF5 flanges that are perfect for critical low-temperature and cryogenic service applications. Adhering to international standards, these flanges boast impressive strength, precise dimensions, and reliability even in extreme conditions. Chetan Steel places a strong emphasis on rigorous quality control, using certified raw materials and precision machining to guarantee consistent performance. With a robust supply network and prompt delivery, they cater to the oil and gas, petrochemical, and process industries, providing dependable piping solutions.

LTCS LF5 Flanges Manufacturer in Delhi, Low Temperature Carbon Steel LF5 Flanges Thickness, LTCS LF5 Flanges Supplier in India, Carbon Steel LF5 Flanges Stockist in India, Low Temperature Carbon Steel LF5 Flanges Size Chart, ASME SA350 Flanges Supplier in India, Low Temperature Carbon Steel LF5 Flanges Exporter in Delhi, LTCS LF5 Flanges Price in Delhi, LTCS LF5 Flanges Price in Delhi, LTCS LF5 Flanges Supplier in India, Low Temperature Carbon Steel LF5 Flanges Distributor in India

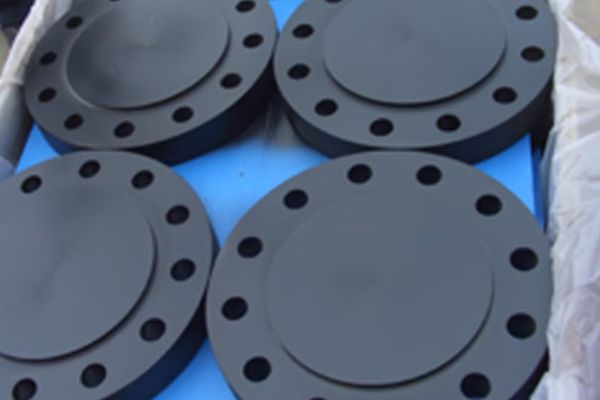

LTCS LF5 Blind Flanges

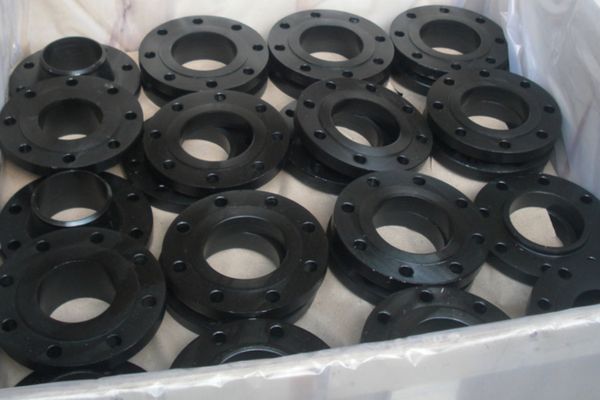

Low Temperature Carbon Steel LF5 Forged Flanges

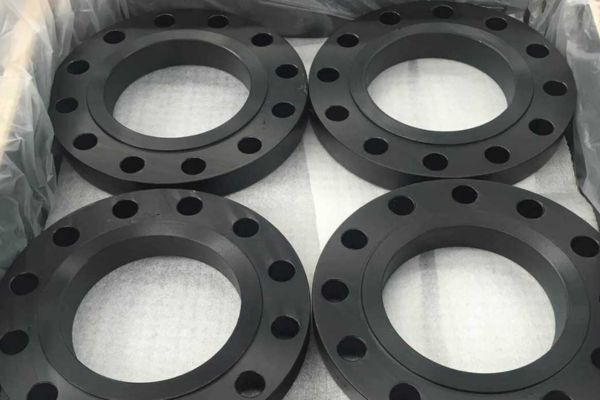

Carbon Steel LF5 Threaded Flanges

What is Low Temperature Carbon Steel LF5 Flanges?

Low Temperature Carbon Steel LF5 flanges are carefully alloyed with specific amounts of carbon, manganese, silicon, nickel, chromium, and molybdenum to boost their toughness in low temperatures. The nickel content plays a crucial role in enhancing resistance to brittle fractures when temperatures drop below zero. In terms of mechanics, LF5 flanges deliver high tensile and yield strength, outstanding impact toughness in cold conditions, and good ductility. They also offer reliable weldability and resistance to stress cracking, ensuring safe and durable performance in cryogenic and low-temperature pressure systems.

LTCS LF5 Flanges Exporter in India ,ASTM A350 Carbon Steel LF5 Flange Manufacturer in Delhi, LTCS LF5 Flanges in Delhi, LF5 Carbon Steel Flanges Price List in India, Carbon Steel LF5 Flange Weight Chart, Low Temperature Carbon Steel LF5 Flanges Manufacturer in Delhi, ANSI B16.5 Carbon Steel LF5 Flange Distributor in India, Carbon Steel LF5 Flanges Sizes in mm, LF5 LTCS Flanges Distributor in Delhi

Low Temperature Carbon Steel LF5 Flanges Specification

Material : ASTM A350 LF5 CL1/CL2
Size Range: 1/2″ (15 NB) to 48″ (1200NB), ASME B16.47 Flanges size range: 26″ to 60″
Typical manufacturing specifications: A350 LF5 , ASME A350 LF5
Origin: European Origin, Indian Origin, US Origin, Korean Origin, Sweden Origin, Ukraine Origin, Japanese Origin Materials
ASME SA350 LF5 LTCS Flanges Manufacturing Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ), LJ, FM , R.T.J , R.J and so on
ANSI ClaASME SA350 LF5 LTCS Flanges: 150 to 2500 Size: 1/2″-24″
AWWA ClaASME SA350 LF5 LTCS Flanges: classes B, D, E, F Size: 3″-144″
ANSI B16.5 ASTM A350 LF5 LTCS Flanges pressure classes: 150, 300, 400, 600, 900, 1500 and 2500 for ASME B16.5
ANSI B16.47 ASTM A350 LF5 LTCS Flanges pressure classes: 75, 150, 300, 400, 600, 900 for ASME B16.47
Specialized in: A350 LF5 SORF, SOFF, BLRF, BLFF, WNRF, WNFF, SWRF, SWFF, Threaded RF, Threaded FF & LJ

Low Temperature Carbon Steel LF5 Flanges Chemical Composition

Element	Composition, w.t % Grades
	LF5
C	≤0.30
Mn	0.60-1.35
P	≤0.035
S	≤0.040
Si	0.20-0.35
Ni	1.00-2.00
Cr	≤0.30
Mo	≤0.12
Cu	≤0.40
Cb	≤0.02

LTCS LF5 Flanges Mechanical Properties

Grade/Class	Tensile Strength		Yield Strength, min.		Elongation, min.	Hardness, max.
LF5	70–95	485–655	37.5	260	22	197

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Low Temperature Carbon Steel LF5 Flanges in Delhi, India

Chetan Steel is one of the most prominent manufacturers and suppliers of superior quality Low Temperature Carbon Steel LF5 Flanges in Delhi, India. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.

A350 LF5 Pressure Rating Chart

ASME/ANSI B 16.5	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, LTCS A350 LF5 Lap Joint Flange, Threaded Flange, LTCS A350 LF5 Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Slip on Flange, LTCS A350 LF5 Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Hubbed Slip on Flange, LTCS A350 LF5 Hubbed Threaded Flange, Lapped Pipe End Flange, LTCS A350 LF5 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Hubbed Slip-On Hubbed Threaded, Plate Flange, LTCS A350 LF5 Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	LTCS A350 LF5 Welding Neck Flange, Socket Welding Flange, LTCS A350 LF5 Slip-On Flange, LTCS A350 LF5 Blind Flange, LTCS A350 LF5 Screwed Boss Flange, LTCS A350 LF5 Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	LTCS A350 LF5 Welding Neck Flange, LTCS A350 LF5 Plate Slip-On Flange, LTCS A350 LF5 Screwed Boss Flange, Slip-On Boss Flange, LTCS A350 LF5 Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Low Temperature Carbon Steel LF5 Flange Dimensions

NPS	O.D. of Flange	Flanges Thickness	Diameter of RF	Diameter of Hub at Base	Lengtd Tdru Hub			Bore or Diameter		Dia. of Hub at Bevel	Radius of Fillet	Deptd of Socket
	O.D. of Flange	Flanges Thickness	Diameter of RF	Diameter of Hub at Base	Welding (WN) Neck	Slip-On (SORF) Threaded (NPT) Socket (SWRF)	Lap Joint (Loose)	Slip-on (SORF) Socket (SWRF)	Lap Joint (Loose)	Dia. of Hub at Bevel	Radius of Fillet	Deptd of Socket
	O	Q	R	X	Y	Y	Y	W	B	H	r	Z
1/2	3-1/2	7/16	1-3/8	1-3/16	1-7/8	5/8	5/8	.88	.90	.84	1/8	3/8
3/4	3-7/8	1/2	1-11/16	1-1/2	2-1/16	5/8	5/8	1.09	1.11	1.05	1/8	7/16
1	4-1/4	9/16	2	1-15/16	2-3/16	11/16	11/16	1.36	1.38	1.32	1/8	1/2
1-1/4	4-5/8	5/8	2-1/2	2-5/16	2-1/4	13/16	13/16	1.70	1.72	1.66	3/16	9/16
1-1/2	5	11/16	2-7/8	2-9/16	2-7/16	7/8	7/8	1.95	1.97	1.90	1/4	5/8
2	6	3/4	3-5/8	3-1/16	2-1/2	1	1	2.44	2.46	2.38	5/16	11/16
2-1/2	7	7/8	4-1/8	3-9/16	2-3/4	1-1/8	1-1/8	2.94	2.97	2.88	5/16	3/4
3	7-1/2	15/16	5	4-1/4	2-3/4	1-3/16	1-3/16	3.57	3.60	3.50	3/8	13/16
3-1/2	8-1/2	15/16	5-1/2	4-13/16	2-13/16	1-1/4	1-1/4	4.07	4.10	4.00	3/8	7/8
4	9	15/16	6-3/16	5-5/16	3	1-5/16	1-5/16	4.57	4.60	4.50	7/16	15/16
5	10	15/16	7.5/16	6-7/16	3-1/2	1-7/16	1-7/16	5.66	5.69	5.56	7/16	15/16
6	11	1	8-1/2	7-9/16	3-1/2	1-9/16	1-9/16	6.72	6.75	6.63	1/2	1-1/16
8	13-1/2	1-1/8	10-5/8	9-11/16	4	1-3/4	1-3/4	8.72	8.75	8.63	1/2	1-1/4
10	16	1-3/16	12-3/4	12	4	1-15/16	1-15/16	10.88	10.92	10.75	1/2	1-5/16
12	19	1-1/4	15	14-3/8	4-1/2	2-3/16	2-3/16	12.88	12.92	12.75	1/2	1-9/16
14	21	1-3/8	16-1/4	15-3/4	5	2-1/4	3-1/8	14.14	14.18	14.00	1/2	1-5/8
16	23-1/2	1-7/16	18-1/2	18	5	2-1/2	3-7/16	16.16	16.19	16.00	1/2	1-3/4
18	25	1-9/16	21	19-7/8	5-1/2	2-11/16	3-13/16	18.18	18.lf2	18.00	1/2	1-15/16
lf2	27-1/2	1-11/16	23	22	5-11/16	2-7/8	4-1/16	lf2.lf2	lf2.25	lf2.00	1/2	2-1/8
24	32	1-7/8	27-1/4	26-1/8	6	3-1/4	4-3/8	24.25	24.25	24.00	1/2	2-1/2

Low Temperature Carbon Steel LF5 Flanges Price List in India, LTCS LF5 Flange Sizes in mm, Low Temperature Carbon Steel LF5 Flange Thickness, Low Temperature Carbon Steel LF5 Flange Distributor in Delhi, Low Temperature Carbon Steel LF5 Manufacturer in Delhi, Low Temperature Carbon Steel LF5 Flanges Supplier in India, LTCS LF5 Flange Size Chart, Low Temperature Carbon Steel LF5 Flanges Exporter in Delhi, Low Temperature Carbon Steel LF5 Flanges Supplier in Delhi

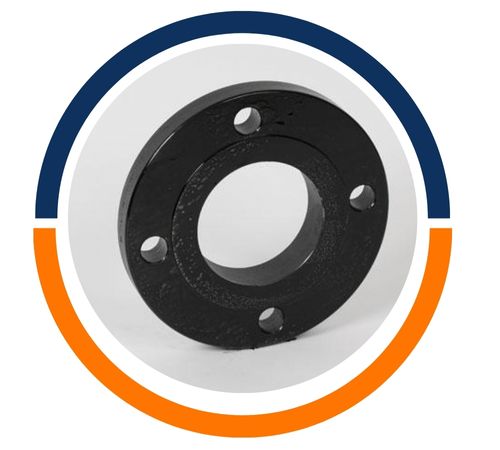

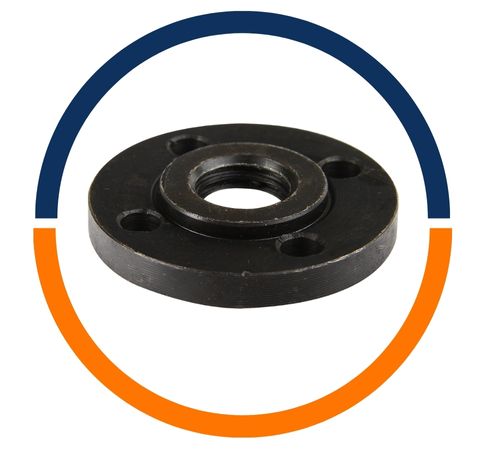

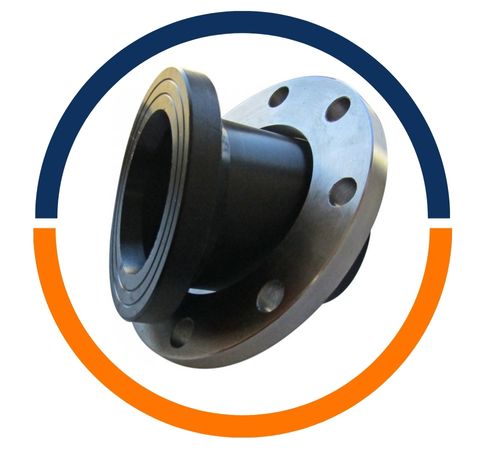

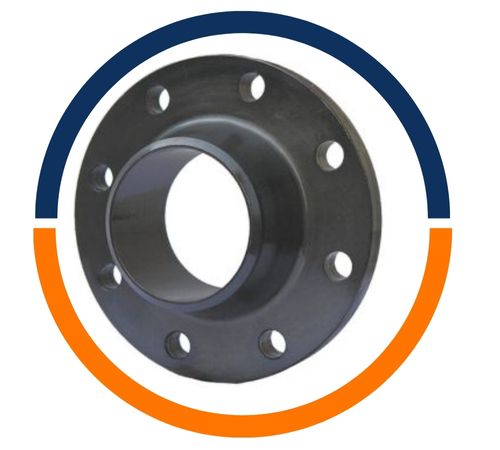

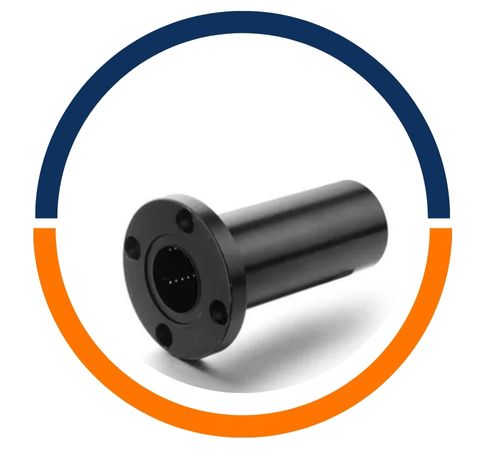

Types of Low Temperature Carbon Steel LF5 Flanges

Carbon Steel LF5 Flange Weight Chart

Nominal Pipe Sizes (NPS)	Slip On (SORF)	Threaded (NPT)	Socket Weld (SWRF)	Lap Joint (Loose)	Blind (BLRF)	Weld Neck (WRNR)
½	1	1	2	1	2	2
¾	2	2	2	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
1½	3	3	3	3	4	4
2	5	5	5	5	5	6
2½	8	8	8	8	7	10
3	9	9	9	9	9	11.5
3½	11	12	11	11	13	12
4	13	13	13	13	17	16.5
5	15	15	15	15	lf2	21
6	19	19	19	19	27	26
8	30	30	30	30	47	42
10	43	43	43	43	70	54
12	64	64	64	64	123	88
14	90	90	90	105	140	114
16	106	98	98	140	180	140
18	130	130	130	160	2lf2	165
lf2	165	165	165	195	285	197
22	185	185	185	245	355	225
24	2lf2	2lf2	2lf2	275	430	268

ASTM A350 LF5 Class 1 Flanges Supplier in Delhi, A350 Gr. LF5 CL.1 Flange Weight Chart, LF5 LTCS Flanges Manufacturer in Delhi, ANSI B16.5 Carbon Steel LF5 Flange Distributor in Delhi, LTCS LF5 Flanges Price List in India, Low Temperature Carbon Steel A350 LF5 Flanges Sizes in mm, Carbon Steel LF5 Flange Distributor in Delhi, LF5 LTCS Flanges Exporter in India, CS LF5 Flange Exporter in Delhi

Uses of Low Temperature Carbon Steel LF5 Flanges

Low Temperature Carbon Steel LF5 flanges find extensive use in systems that operate under low or cryogenic temperatures. You’ll commonly see them in oil and gas pipelines, LNG plants, petrochemical processing units, refrigeration systems, and offshore installations. These flanges are ideal for connecting pipes, valves, pumps, and pressure vessels where temperature resistance and structural integrity are paramount. LF5 flanges guarantee leak-proof joints, safe fluid transfer, and a long service life even in harsh environments, making them a vital component in low-temperature and high-pressure industrial piping systems.
