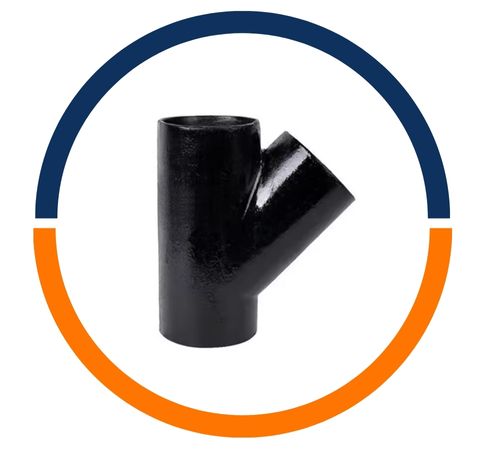

Chetan Steel has earned a solid reputation as a reliable manufacturer and supplier based in Delhi, specializing in top-notch Carbon Steel Buttweld Pipe Fittings for various industrial piping systems. Thanks to their state-of-the-art manufacturing facilities and rigorous quality control measures, the company ensures that all fittings meet ASTM, ASME, and international standards. Chetan Steel offers a comprehensive selection of buttweld fittings, including elbows, tees, reducers, caps, and bends, available in different sizes and schedules. They cater to industries like oil and gas, petrochemicals, refineries, power generation, and construction, and are recognized for their consistent quality, competitive pricing, and prompt delivery.
Carbon Steel Buttweld Pipe Fittings are crafted from premium carbon steel, featuring a carefully controlled chemical composition that includes carbon, manganese, silicon, sulfur, and phosphorus. This well-balanced mix guarantees impressive strength, toughness, and weldability. On the mechanical side, these fittings deliver dependable tensile and yield strength, outstanding resistance to internal pressure, and solid impact toughness. Through proper heat treatment and forming processes, they achieve uniform wall thickness, precise dimensions, and long-lasting durability. These fittings maintain their structural integrity even under high temperature, pressure, and mechanical stress.
| Pipe Fittings Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Carbon Steel Pipe Fittings size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| CS Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A234 Buttweld Fitting Connection | Welding |

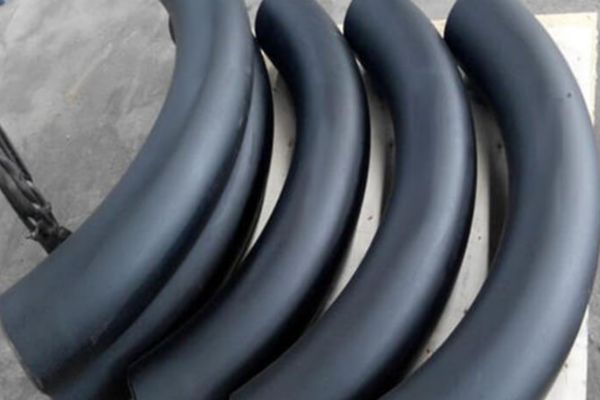

| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Buttweld Fitting |
| ASTM A234 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Carbon Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 234 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

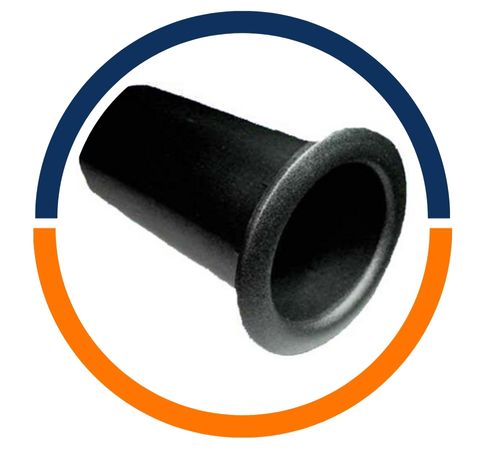

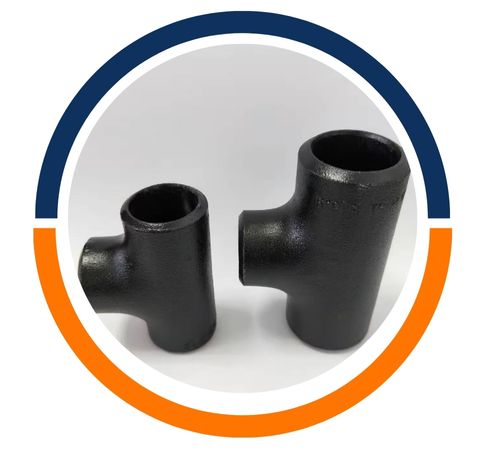

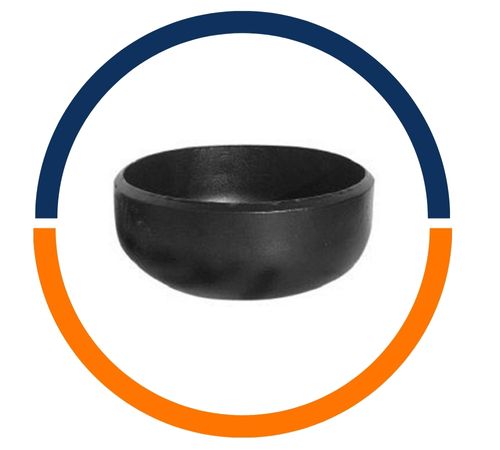

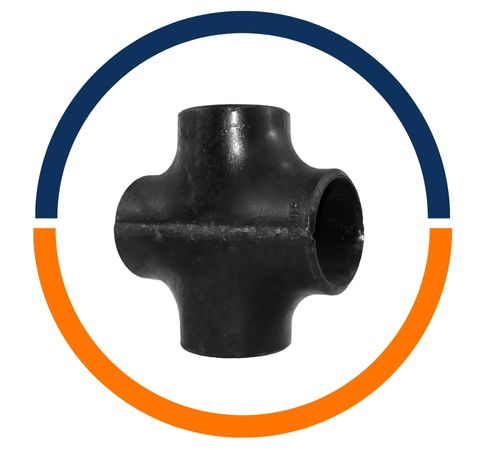

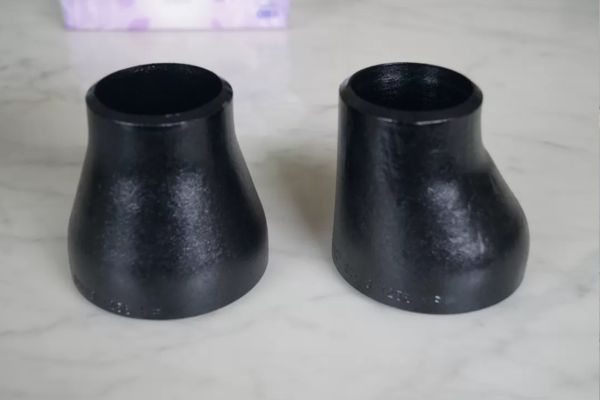

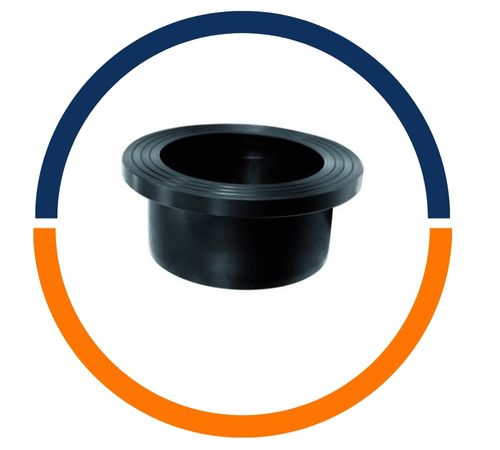

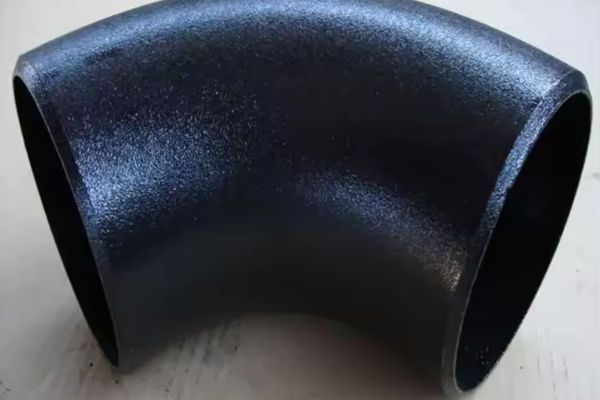

| Specialized manufacturer of | CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Element | Carbon Steel Buttweld Fittings (% by weight) |
|---|---|
| Carbon (C) | 0.05% – 2.1% |
| Manganese (Mn) | 0.30% – 1.65% |
| Silicon (Si) | 0.15% – 0.60% |
| Phosphorus (P) | ≤ 0.035% |
| Sulfur (S) | ≤ 0.040% |
| Iron (Fe) | Remainder (balance) |
| Properties OF Carbon Steel Buttweld Pipe Fittings | Metric | Imperial |
| Tensile Strength For Carbon Steel | 595 MPa | 86300 psi |
| Yield Strength For CS | 260 MPa | 37700 psi |
| Elasticity Modulus | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation At break in 50 millimeter | 55% | 55% |
| Hardness And Rockwell B | 85 | 85 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Daimeter) | Minimum WALL | Normal Weight Chart | Maximum W.P. psi |
| 1/4″ | .540 | .344 | .088 | .086 | 780 |
| 3/8″ | .675 | .473 | .091 | .115 | 620 |
| 1/2″ | .840 | .602 | .109 | .170 | 590 |
| 3/4″ | 1.050 | .804 | .113 | .226 | 480 |
| 1″ | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4″ | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2″ | 1.900 | 1.590 | .145 | .537 | 330 |
| *2″ | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2″ | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3″ | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2″ | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4″ | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5″ | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6″ | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8″ | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10″ | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12″ | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14″ | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16″ | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18″ | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20″ | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24″ | 24.000 | 22.544 | .687 | 33.652 | 120 |
| Pressure-Temperature ratings for ASME B16.9 Carbon Steel Buttweld Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 Inches | 1 1/4 – 2 Inches | 2 1/2 – 3 Inches | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Chetan Steel is a top manufacturer and supplier of high-quality Carbon Steel Buttweld Pipe Fittings products in Delhi, India. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel Buttweld Pipe Fittings are extensively utilized in piping systems that demand robust, leak-proof, and permanent connections. They’re commonly found in oil and gas pipelines, petrochemical plants, refineries, and power generation facilities. Additionally, these fittings play a crucial role in chemical processing units, water treatment systems, and industrial piping networks. Their smooth flow characteristics help minimize turbulence and pressure loss. Carbon steel buttweld fittings are particularly well-suited for high-pressure and high-temperature applications, making them a go-to choice for various demanding environments.
