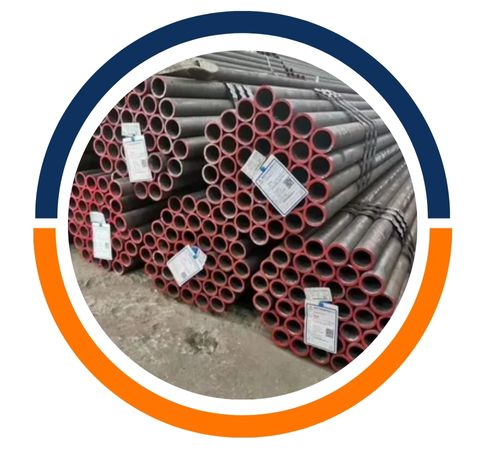

Chetan Steel is a reliable manufacturer and supplier in Delhi, known for providing high-quality carbon steel piping solutions for engineering and structural applications. With a strong emphasis on precision, durability, and adherence to international standards, the company supports a wide range of industrial needs. Carbon Steel DIN 1629 Pipes are designed for non-pressure applications where mechanical strength, dimensional accuracy, and excellent machinability are essential. Manufactured using advanced production processes and strict quality control, these pipes deliver dependable performance and long service life across various industrial projects.
Carbon Steel DIN 1629 Pipes are produced from high-quality carbon steel with carefully controlled chemical composition to ensure good tensile strength, yield strength, and toughness. These pipes offer excellent formability, machinability, and weldability. The refined microstructure provides dimensional stability and resistance to mechanical stress. Designed mainly for structural and mechanical use, Carbon Steel DIN 1629 Pipes maintain consistent mechanical properties and reliable performance throughout their service life.
| Standard | DIN 1629 |
| Grade | ST52 |
| Size in MM | 4 To 190 x Wall Thickness 0.5 To 15 |
| Outer Dimensions in MM | 4 To 60 |
| Wall Thickness in MM | 0.5 To 8 |
| Schedule | Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer |
|---|---|
| Length in MM | 6000 |
| Pipe Marking | All Pipe are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number |
| St37.0 | 1.0254 | 0.17 | 0.040 | 0.040 | 0.009²) |
| St44.0 | 1.0255 | 0.21 | 0.040 | 0.040 | 0.009²) |
| St52.0³) | 1.0421 | 0.22 | 0.040 | 0.035 | – |
| Steel Grade | Upper Yield Stress ReH for wall thickness, in mm, | Tensile strength Rm N/mm² | Elongation(%) A5 | ||||
|---|---|---|---|---|---|---|---|
| Symbol | Material Number | up to 16 | over 16 up to 40 | over 40 up to 65 | Longitudinal | Transverse | |
| St 37.0 | 1.0254 | 235 | 225 | 216 | 350²) to 480 | 25 | 23 |
| St 44.0 | 1.0256 | 275¹) | 265¹) | 255¹) | 420²) to 550 | 21 | 19 |
| St 52.0 | 1.0421 | 355 | 345 | 335 | 500²) to 650 | 21 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
Chetan Steel is a leading manufacturer and supplier of high-quality Carbon Steel DIN 1629 Pipe products in Delhi, India. Specializing in steel solutions, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product lineup includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Renowned for our reliable delivery and exceptional customer service, we are committed to providing top-grade steel materials that ensure durability and performance in various industrial applications. Chetan Steel is your trusted partner for all your Carbon Steel DIN 1629 Pipe needs.
Carbon Steel DIN 1629 Pipes are widely used in mechanical engineering, structural fabrication, automotive components, and general industrial manufacturing. Common applications include machine parts, structural frames, engineering assemblies, and support structures. These pipes are ideal for applications where pressure containment is not required but strength and durability are critical. Preferred by engineers and fabricators, Carbon Steel DIN 1629 Pipes offer cost-effective performance, ease of processing, and dependable quality for diverse industrial and engineering projects.
