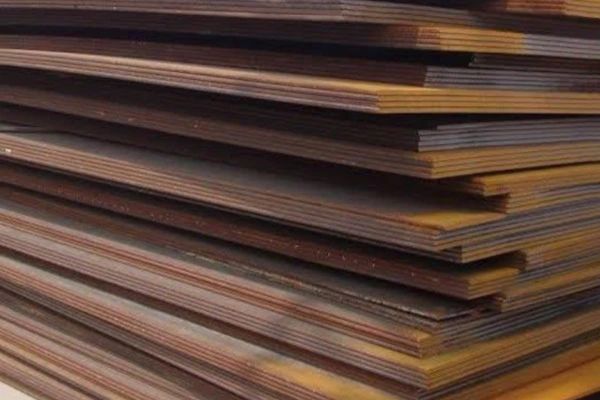

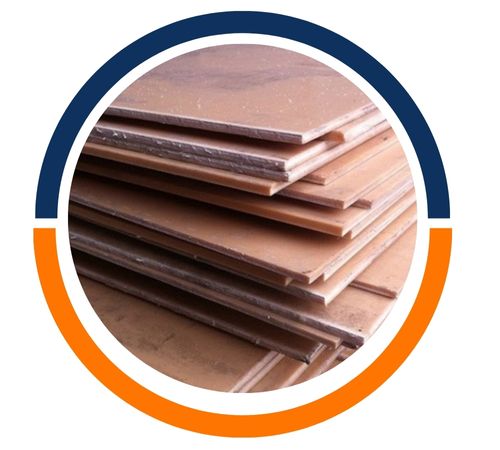

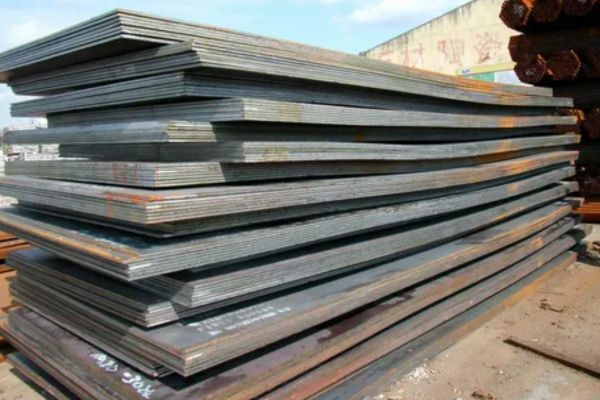

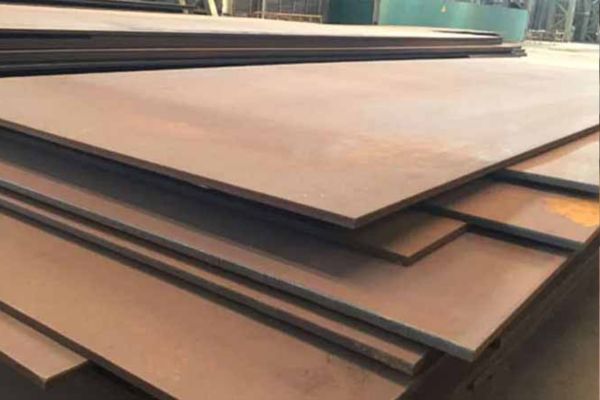

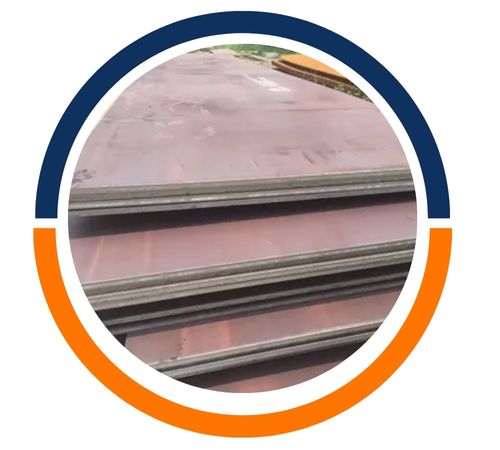

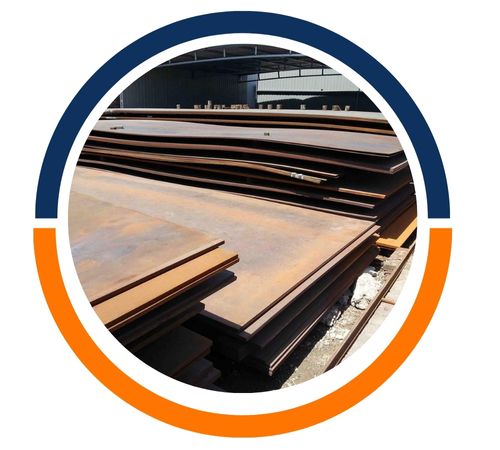

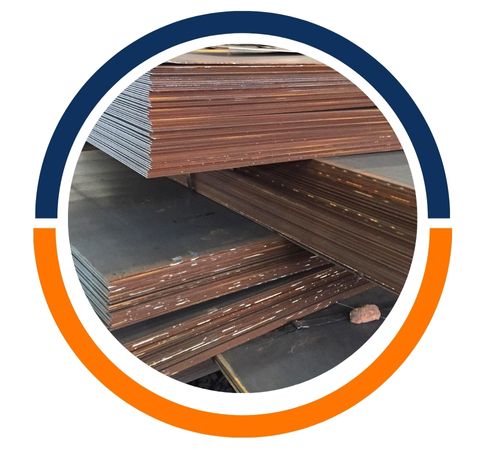

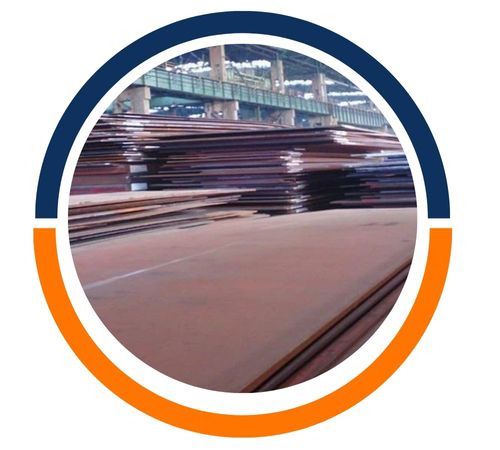

Chetan Steel, located in Delhi, has made a name for itself as a top-notch manufacturer and supplier of premium DILLIDUR 400V Sheets and Plates. With a strong focus on quality, precision, and customer satisfaction, this company has earned a solid reputation in the steel industry. Their DILLIDUR 400V products are produced using cutting-edge techniques and rigorous quality control, guaranteeing exceptional performance and reliability. Catering to a variety of industrial sectors, Chetan Steel offers customized solutions to meet the ever-changing needs of modern engineering and construction, making them a go-to partner for businesses in search of durable, high-performance steel materials.
DILLIDUR 400V Sheets and Plates are primarily made from high-carbon, high-chromium alloy steel, engineered for remarkable hardness and wear resistance. This material boasts impressive mechanical properties, such as high tensile strength, superior toughness, and excellent resistance to deformation under heavy loads. Its microstructure ensures consistent hardness throughout both the surface and core, while also allowing for good machinability, making precise fabrication a breeze. These characteristics make DILLIDUR 400V a reliable choice for applications that demand durability and performance in extreme conditions. Heat treatment processes further boost its strength and wear-resistance, ensuring it delivers long-lasting and efficient service.
Item: Dillidur 400V
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : PVDF, PE, HDP, SMP, EP
| C | Si | Mn | P | S | Mo | Ni | Cr | V | Nb | B |
| ≤ 0.20 | ≤ 0.50 | ≤ 1.80 | ≤ 0.025 | ≤ 0.010 | ≤ 0.50 | ≤ 0.80 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
| Grade | Mechanical Property | Charpy V Impact Test | |||
| DILIDUR 400V | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
