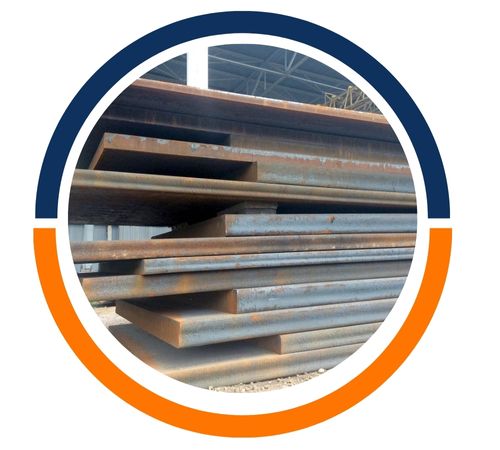

Chetan Steel has earned a solid reputation as a reliable manufacturer and supplier based in Delhi, specializing in top-notch DILLIDUR 450V Sheets and Plates designed for high-wear industrial applications. Thanks to their cutting-edge processing capabilities and rigorous quality control measures, the company guarantees materials that not only meet international standards but also thrive under demanding service conditions. Chetan Steel delivers DILLIDUR 450V plates that boast consistent hardness, precise dimensions, and dependable performance. Catering to sectors like mining, cement, construction, power, and heavy engineering, they are recognized for their competitive pricing, prompt delivery, and excellent technical support, making them a trusted partner for wear-resistant steel solutions.
DILLIDUR 450V Sheets and Plates are crafted from low-carbon alloy steel, enhanced with chromium, molybdenum, nickel, and boron to create wear-resistant steels. This carefully optimized blend results in impressive hardness, typically around 450 HBW, while also providing good toughness and impact resistance. On the mechanical side, the material showcases outstanding abrasion resistance, high tensile strength, and stable yield properties. The quenched and tempered processing guarantees uniform hardness across the plate, along with dimensional stability and controlled ductility, ensuring reliable performance even in the face of severe wear, impact, and heavy loading conditions.
Item: Dillidur 450V
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| C | Si | Mn | P | S | Mo | Ni | Cu | Cr | V | Nb | B |
| ≤ 0.25 | ≤ 0.70 | ≤ 1.60 | ≤ 0.025 | ≤ 0.010 | ≤ 0.50 | ≤ 0.80 | ≤ 0.30 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
| Grade | Mechanical Property | Charpy V Impact Test | |||
| DILIDUR 450V | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -20 | J | |
| 950 | 1400 | 11 | 35 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
